Mate Dealer 2.0


Author:Bouni, Sannny
Projektstatus:alpha
Fortschitt:60% completed
Beschreibung:
The Matedealer is dead, long live the MateDealer!

Changes to MateDealer 1.0

  • completely custom build VMC
  • new wiring
  • no buttons on the machine to interact with it → web service / smartphone app only
  • no MDB → reduce the complexity
  • a clear json based protocol

Tasks

  • renew the wiring of the slot motors ✓
  • renew the wiring of the slot empty switches ✓
  • renew the wiring of the motor position switches ✓
  • print a mount for the new vending machine controller ✓
  • design the pcb for then new vending machine controller ✓
  • mount the power supply in a nicer way than in the old MateDealer ✓
  • do the wiring on the vmc side ✓
  • write the code for the vmc ✓
  • write a Android/iOS app that can control the vending machine (the webapp works well for all devices)
  • write a webinterface that can control the vending machine ✓(alpha)

Files

Impressions

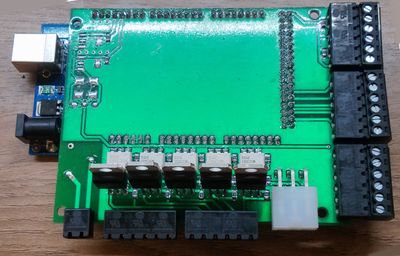

The prototype of the custom VMC stacked on top of the Arduino Mega 2560

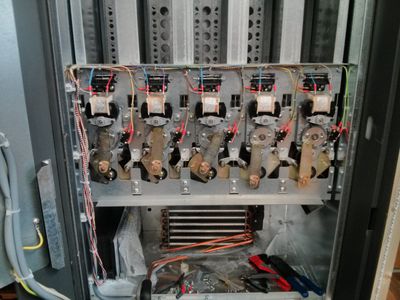

The new wiring inside the colled box

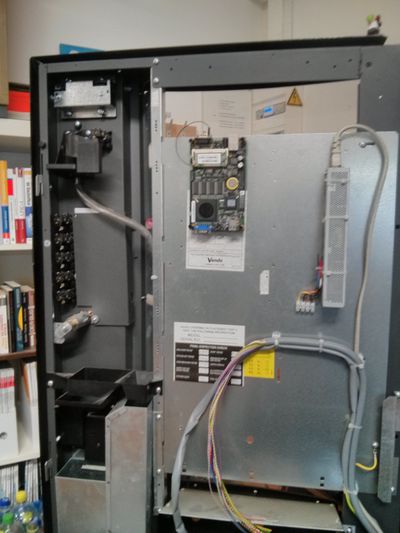

The wiring on the side where the VMC is mounted

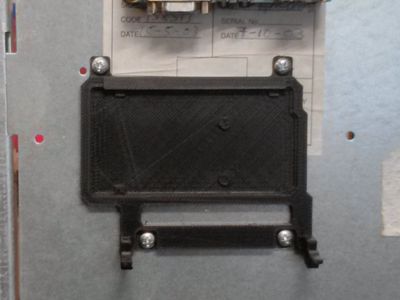

The empty VMC mount

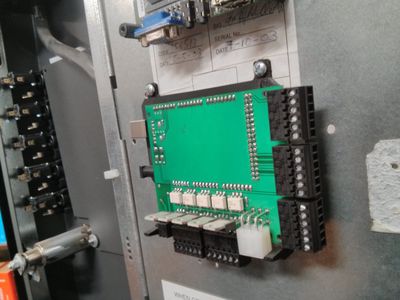

The VMC snaped into the mount
